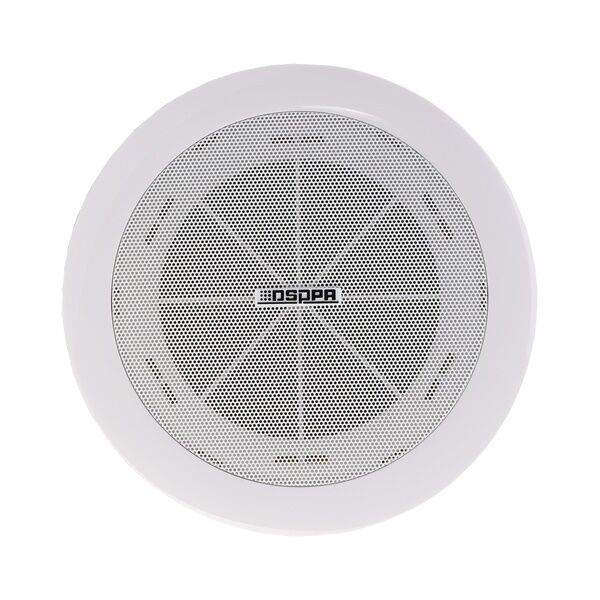

DSP501 1.5W-10W ABS Ceiling Speaker
DSP501 Features:
● 70/100V, 1.5 ~ 6W with multiple terminals
● 4.5” paper cone driver unit
● Max. Sound Pressure Level 96±2dB
● Effective Freq. Range 75Hz ~ 20kHz
● Rated power output at 3W
● High sensitivity(91±2dB)
● ABS material
DSP501 is a ceiling speaker with a built-in 70v/100v transformer. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes the long-distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 4.5” speaker driver is designed of wide frequency response 75-20,000Hz, Its made of high-quality ABSmaterial, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation; Driver surrounds excellent damping, long life, clear and sonorous sound.
Specification
| Model | DSP501 |
| FULL-RANGE | 4.5” X 1 |
| RATED POWER | 5W |
| MAX POWER | 6W |
| LINE INPUT | 70/100V |
| SENSITIVITY(1M,1W) | 91±2dB |
| MAX SPL(1M) | 96±2dB |
| FREQ.RESP | 75Hz-20kHz |
| CUTOUT SIZE | Ø154 – Ø164mm |
| DIMENSIONS(H x W x L) | 80 x Ø180mm |
| WEIGHT | 0.8kg |
