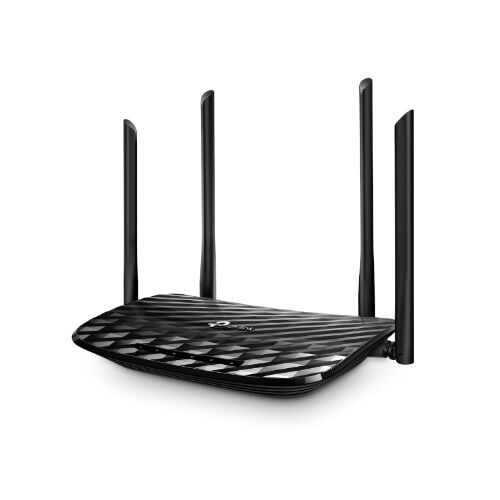

TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Router
TP-Link Archer C6 Overview:
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- MU-MIMO achieves 2X efficiency by communicating with up to 2Â devices at once
- Supports Access Point mode to create a new Wi-Fi access point
TP-Link Archer C6 Specification:
| SYSTEM | |
|---|---|
| System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | Wireless Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| Ports | 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port |
| Button | Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button |
| Power Supply | 12V/1A |
| Dimensions ( W x D x H ) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Antenna | 4 Fixed Omni Directional Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBmï¼›11a 54Mbps:-78dBmï¼› 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbmï¼› |
| Transmit Power | CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES | |
|---|---|
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Access Control | Parental Controls, Local Management Control, Host List, White List, Black List |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4GHz guest network, 5GHz guest network |
| VPN Server | OpenVPN，PPTP VPN |
