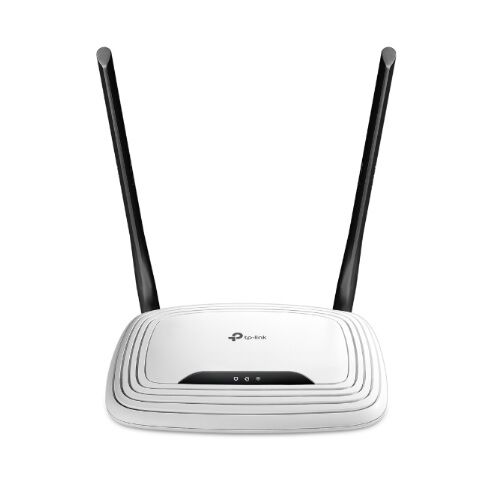

TP-Link TL-WR841N 300Mbps Wireless N Router
TP-Link TL-WR841N Overview:
- 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming*
- Two antennas greatly increase the wireless robustness and stability
- Easy wireless security encryption at a push of WPS button
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
- Compatible with IPv6 -the more recent Internet Protocol version
- TP-LINK Tether App allows quick installation and easy management using any mobile device
TP-Link TL-WR841N Specification:
| HARDWARE FEATURES | |
|---|---|
| Interface | 4 10/100Mbps LAN PORTS 1 10/100Mbps WAN PORT |
| Ports | 4 × 10/100Mbps LAN Ports, 1 × 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9VDC / 0.6A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 6.9 x 4.6 x 1.3 in. (173 x 118 x 33mm) |
| Antenna | 2*5dBi Fixed Omni Directional Antenna |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER |
| Transmit Power | CE: <20dBm FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comex, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | Support IPv4 and IPv6 |
| Guest Network | 2.4GHz Guest Network x1 |
| Working Modes | Wireless Router, Range Extender, Access Point, WISP |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Wireless Router TL-WR841N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft® Windows® 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC® OS, NetWare®, UNIX® or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
