Raised floor systems, also known as access floors, are an elevated structural floor that is stabilized over a solid substrate, typically a concrete slab. A raised floor system creates a gap ideal for running electrical wiring and HVAC ducts.

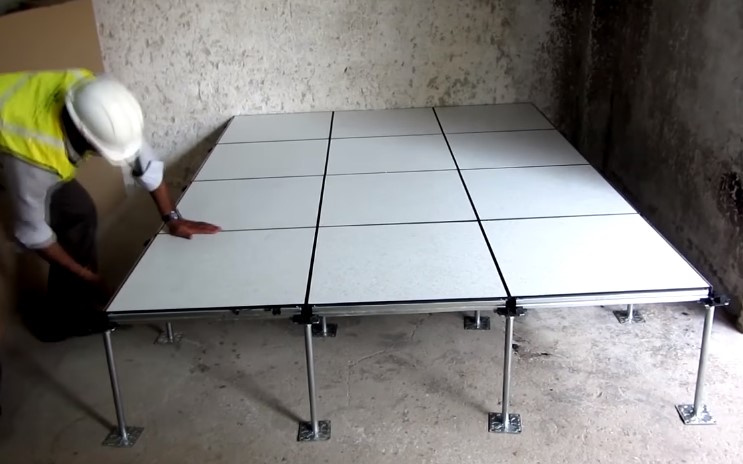

The structural floor is composed of panels on a grid supported by adjustable vertical pedestals. The pedestals are affixed to the subfloor through either mechanical fixings or adhesives. Since the pedestals are adjustable, the gap between the elevated floor and the subfloor can be between 3 and 48 inches.
Panels are typically 2 feet by 2 feet and are normally composed of a cement or wood core clad in steel or aluminum. The panels are compatible with many flooring finishessuch as: vinyl, linoleum, laminate, rubber, carpet and stone or ceramic tiles.
Implementing value engineering and life cycle cost analysis will help find a balance between aesthetics, cost, durability and maintenance along with the purpose of the raised floor to determine what finishing materials are best-value options for the project.
Benefits of a Raised Floor Systems
The most common usage for access floors is to run cables, electrical wiring and HVAC ducts. Running cables and electrical wiring through the accessible space between the panels and the subfloor allows easy access and flexibility; wiring can be rerouted, repaired and upgraded without construction and minimal interference to the business’ everyday activity. When combined with modular electrical systems and modular walls, the entire building can be reconfigured in a fraction of the time it would traditionally take.
Heating and cooling a building with a raised flooring system is also more efficient. The empty space between the panels and the subfloor acts as a plenum chamber to dispense conditioned air evenly throughout the building. Additionally, since warm air rises, heating the building from the access floor gap during the winter is more effective and efficient.
Raised floors are particularly useful for data centers and telecommunication facilities. Computer systems can rest on perforated tiles so that conditioned air is accessible for each unit. The equipment can then be designed to draw the cool air from below.
With the increased efficiency and accessibility, access floors are an ideal alternative to suspended ceilings, pre-cast trunking and dado trunking.
Raised floor systems have been used in construction for several decades, originally developed to facilitate access to electrical and mechanical systems in commercial buildings. In recent years, raised floor systems have increasingly been used in data centers, educational institutions and other commercial buildings to support highly specialized equipment and to provide flexibility for future reconfiguration. These systems offer several advantages, but also present certain challenges in terms of maintenance and installation. This article provides an overview of raised floor systems, including the different types, their advantages and disadvantages, and their application in various industries.
If you’ve ever walked into a server room or data center, you may have noticed the distinctive elevated flooring. This is known as a raised floor system, which plays a critical role in supporting the complex infrastructure of modern technology. In this article, we’ll discuss what raised floor systems are, their history, and their various purposes.
Definition of Raised Floor Systems
A raised floor system is a type of flooring installation that elevates the surface off the subfloor. This creates an open space between the elevated surface and the subfloor, which can be utilized for a variety of purposes. Raised floors can be made from various materials, such as wood, steel, or cementitious panels.
History of Raised Floor Systems
The concept of raised floors can be traced back to the 1960s when they were first used to house computer systems. The early computer systems generated a lot of heat, and the raised floors were used to facilitate air circulation and provide a pathway for power and data cables. Since then, raised floors have become a standard feature in many industries, including healthcare, education, and finance.
Purposes of Raised Floor Systems
Raised floor systems serve a range of purposes, including facilitating air circulation, cable management, and providing access to systems infrastructure. They offer a flexible solution that can be easily adapted to meet changing needs. Raised floors can also be designed to provide acoustic insulation, seismic bracing, and fire resistance.
Different Types of Raised Floor Systems
There are several types of raised floor systems, each with unique properties and benefits. Here are some of the most common types of raised floors:
Low-profile Raised Floor Systems
Low-profile raised floor systems are typically less than 6 inches high and are used in applications where space is limited.
Hollow Steel Raised Floor Systems
Hollow Steel raised floor systems are made from steel panels with a hollow core. They are lightweight and easy to install, making them an ideal choice for temporary installations.
Cementitious Raised Floor Systems
Cementitious raised floor systems consist of panels made from a mixture of cement and other materials. They are known for their durability and fire resistance.
Woodcore Raised Floor Systems
Woodcore raised floor systems consist of panels made from wood fiber, which makes them lightweight and easy to install. They are also an eco-friendly option.
Encapsulated Stone Raised Floor Systems
Encapsulated stone raised floor systems utilize a composite panel with a layer of natural stone on the surface. They are ideal for applications where a high-end finish is desired.
Advantages and Disadvantages of Raised Floor Systems
Like any technology, raised floor systems have their advantages and disadvantages. Here are some of the main benefits and drawbacks of raised floors:
Advantages of Raised Floor Systems
– Facilitate air circulation and cooling of equipment
– Provide easy access to cabling and infrastructure
– Can be easily adapted to changing needs
– Provide acoustic insulation and fire resistance
– Can improve the aesthetic appearance of a space
Disadvantages of Raised Floor Systems
– Can be expensive to install and maintain
– Limited weight capacity
– Can be difficult to repair or replace damaged panels
– Can create a tripping hazard if not properly installed
Installation and Maintenance of Raised Floor Systems
Proper installation and maintenance of raised floor systems are critical to ensuring their longevity and effectiveness. Here are some common practices for installation and maintenance:
Installation Process of Raised Floor Systems
– Ensure subfloor is level and clean
– Install pedestals at regular intervals to support the raised floor panels
– Secure panels to the pedestals
– Run cabling and infrastructure through the open space beneath the panels
Maintenance of Raised Floor Systems
– Inspect panels regularly for damage or wear
– Replace damaged or worn panels promptly
– Keep the open space beneath the panels free of debris
– Ensure pedestals are secure and stable
Common Issues with Raised Floor Systems
– Damage or wear to panels can compromise the integrity of the raised floor system
– Improper installation or maintenance can lead to instability or tripping hazards
– Overloading the raised floor system can cause damage or failure
– Inadequate air circulation can cause equipment to overheat.
Raised Floor Systems in Data Centers
When it comes to data centers, raised floor systems are a crucial element in maintaining a reliable environment. Raised floor systems are installed to create an elevated platform above the subfloor, allowing enough space for cables, pipes, and electrical wiring to run between the subfloor and elevated platform. This design also provides a controlled airflow, which is important for regulating the server room temperature.
Importance of Raised Floor Systems in Data Centers
The raised floor system is an essential component of modern data center infrastructure. Without it, power, data, and cooling services could become dangerously tangled or create an unsuitable climate for data center hardware. The raised floor system helps to maintain organized data management and ensures the safety of the data center facility and equipment.
Design Considerations for Raised Floor Systems in Data Centers
When designing a raised floor system for a data center, there are several factors to consider, including load capacity, cable management, and airflow. The floor design must be capable of accommodating the weight of heavy equipment, and it must provide ample space to run power and data cables. Additionally, the design must allow for proper airflow, to ensure that equipment doesn’t overheat.
Maintenance of Raised Floor Systems in Data Centers
Maintaining a raised floor system typically involves regularly cleaning any debris or dirt that may have accumulated in the subfloor space. Additionally, technicians should regularly check the subfloor area for any signs of wear or damage. Repairs should be made promptly to avoid any potential safety hazards.
Raised Floor Systems in Commercial Buildings
Raised floor systems are not only beneficial in data centers but are also utilized in commercial buildings such as offices and retail spaces.
Applications of Raised Floor Systems in Commercial Buildings
Raised floor systems in commercial buildings provide a variety of benefits, including sound insulation, enhanced access to cabling and wiring, and improved airflow. These benefits make raised floor systems highly desirable in commercial spaces such as call centers, trading floors, and other facilities that require open space.
Design Considerations for Raised Floor Systems in Commercial Buildings
Design considerations for raised floor systems in commercial buildings include accessibility, durability, and flexibility. The floor design must be easily accessible to allow for easy cable management, while also being durable enough to withstand heavy foot traffic. Additionally, the design must allow for flexibility, as office layouts and equipment may change frequently.
Maintenance of Raised Floor Systems in Commercial Buildings
Maintenance of raised floor systems in commercial buildings is similar to that of data centers, including regular cleaning and inspections to ensure the system remains safe and functional.
Raised Floor Systems in Educational Institutions
Raised floor systems are also commonly used in educational institutions such as libraries and research facilities.
Applications of Raised Floor Systems in Educational Institutions
Raised floor systems are ideal for educational institutions because of their flexibility, allowing for easy reconfiguration of space. This flexibility also makes it easy to move technology equipment, such as computers and servers, as needed.
Design Considerations for Raised Floor Systems in Educational Institutions
Design considerations for raised floor systems in educational institutions include flexibility and durability. The floor design must be able to withstand heavy foot traffic, while also providing easy access to cables and wiring. Additionally, the design must allow for flexibility, as teaching methods and technology equipment may change frequently.
Maintenance of Raised Floor Systems in Educational Institutions
Maintenance of raised floor systems in educational institutions is similar to that of commercial buildings, including regular cleaning and inspections to ensure the system remains safe and functional.
Future of Raised Floor Systems
The use of raised floor systems is becoming increasingly popular in numerous industries, and the future of these systems looks promising.
Technological Advancements in Raised Floor Systems
Technology advancements are being made to improve the design and capabilities of raised floor systems. The future may see the integration of smart technology into raised floor systems, providing real-time data on the performance of the system and equipment housed within.
Innovations in Raised Floor System Design
Innovations in raised floor system design continue to evolve, with manufacturers exploring new materials and construction methods to improve the performance and sustainability of raised floor systems.
The Future of Raised Floor Systems in Various Industries
The future of raised floor systems looks promising across numerous industries, including healthcare, transportation, and public service. As technology advancements continue to unfold, raised floor systems will likely play an increasingly important role in supporting the technological infrastructure of businesses and institutions in various sectors.In conclusion, raised floor systems have become an integral part of various industries, allowing for versatile and flexible designs while providing access to critical infrastructure. It is important to carefully consider the type of raised floor system to be used and the maintenance that is required to ensure its longevity. As technology and building design continues to evolve, the future of raised floor systems will undoubtedly be shaped by an increasing need for flexibility, sustainability and efficiency.
Frequently Asked Questions
What are the advantages of raised floor systems?
Raised floor systems provide a flexible and versatile design solution for a variety of industries. They allow for easy access to electrical and mechanical systems, making maintenance and repairs simpler. They also allow for future reconfiguration of a space with minimal disruption, which can be particularly important in commercial buildings and data centers.
What are the disadvantages of raised floor systems?
While raised floor systems offer several advantages, there are also some disadvantages to consider. Raised floor systems can be more expensive than traditional flooring options, and installation can be more complex. Maintenance can also be more challenging, as debris can accumulate in the voids beneath the floor.
What are the different types of raised floor systems?
The most common types of raised floor systems include low-profile, hollow steel, cementitious, woodcore, and encapsulated stone systems. Each type has its own set of advantages and disadvantages, depending on the intended application and usage.
Can raised floor systems be used in residential buildings?
While raised floor systems are more commonly used in commercial and institutional buildings, they can also be used in residential structures. However, they are not as common in residential buildings due to the added expense and complexity of installation. Raised floor systems explained
Questions to ask when planning for a raised floor system
There are a few things to be considered when planning a raised floor system in a construction project. These considerations will help ensure a smooth, safe and timely installation along with confirmation of the necessary structural integrity based on projected use.
- What conditions does the subfloor need to meet? e.g. sealed, wet or dry contamination, structural integrity, level of tamp finish, moisture and alkalinity levels
- What are the local conditions required to ground the access floor?
- How will the raised floor interact with the door thresholds?
- What safety guidelines are required for access floors? e.g. fire suppression systems
- What are the load-bearing requirements? e.g. stationary loads, rolling loads, pedestrian traffic
A raised flooring system can be a beneficial element to any building. The flexibility and efficiency it provides is ideal for a variety of potential occupants. Additionally, occupants don’t have to feel constricted by certain aesthetic designs as there are many finishing options for access floors. Examining and answering a few considerations along with bringing any questions or concerns to your flooring contractor will ease the effort and simplify the planning process.
